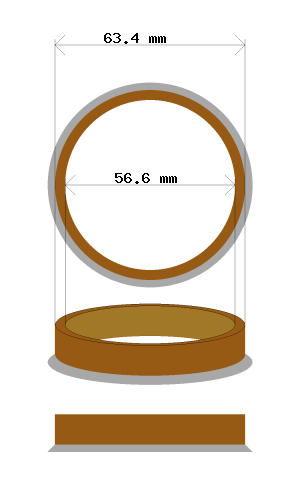

Hub centric rings 63.4 → 56.6 mm
Wheel center bore
63.4 mm
Car hub
56.6 mm
Height
10 mm
Material
Plastic
Edge
~3 mm
Package size
4 pcs (1 set)
✅ In stock — ships within 24h!
🚗 Compatible cars (hub size 56.6 mm)
The following cars have a hub size of 56.6 mm. This hub centric ring fits when the wheel center bore is 63.4 mm.
Volvo
-
S40 / V40 (1. sukupolvi)
S40/V40 I (1995–2004)
Opel
-
Astra
F (1991–1998), G (1998–2004), H (2004–2009), J (2009–2015), K (2015–2021)
-
Corsa
A (1982–1993), B (1993–2000), C (2000–2006), D (2006–2014), E (2014–2019)
-
Mokka
Mokka (2012–2020)
-
Kadett
C (1973–1979), D (1979–1984), E (1984–1991)
-
Ascona
A (1970–1975), B (1975–1981), C (1981–1988)
-
Vectra
A (1988–1995), B (1995–2002), C (2002–2008)
-
Omega
A (1986–1993)
-
Calibra
Calibra (1989–1997)
-
Manta
Manta A (1970–1975), Manta B (1975–1988)
Fiat
-
500
500 (2007–2023), 500e (2020–)
-
Punto
Punto I (1993–1999), Punto II (1999–2005), Grande Punto (2005–2018)
-
Tipo / Egea
Tipo (2015–)
🔧 Installation guide
1
Clean the hub
Clean the car hub and wheel center bore from dirt and rust. A dry, clean surface ensures a tight fit.
2
Place the ring on the hub
Press the hub centric ring onto the car hub. It should fit snugly — not too loose and not forced.
3
Mount the wheel
Lift the wheel into place. The wheel center bore sits on top of the hub centric ring, centering the wheel precisely on the hub.
4
Tighten the bolts
Tighten the wheel bolts/nuts in a cross pattern to the correct torque. The hub centric ring stays between the wheel and hub.
📏 How do I know the right size?
Measure your wheel center bore diameter (63.4 mm) and your car hub diameter (56.6 mm). See measuring guide →
📦 Shipping
Affordable letter delivery. In-stock products ship within 24h of order.
💬 Need help choosing?
Contact us: info@hubcentric-rings.com. We help you find the right size!
⚙️ Not the right size?
We also manufacture hub centric rings custom made to your measurements.
Custom order →
